How To Set Up Square Tabbar With Flutter Using Android

admin_img Posted By Bajarangi soft , Posted On 23-09-2020

Customizing the style of the tabs indicator in Flutter can be done with simple lines of code without implementing our own widget.

How to create square TabBar in flutter app

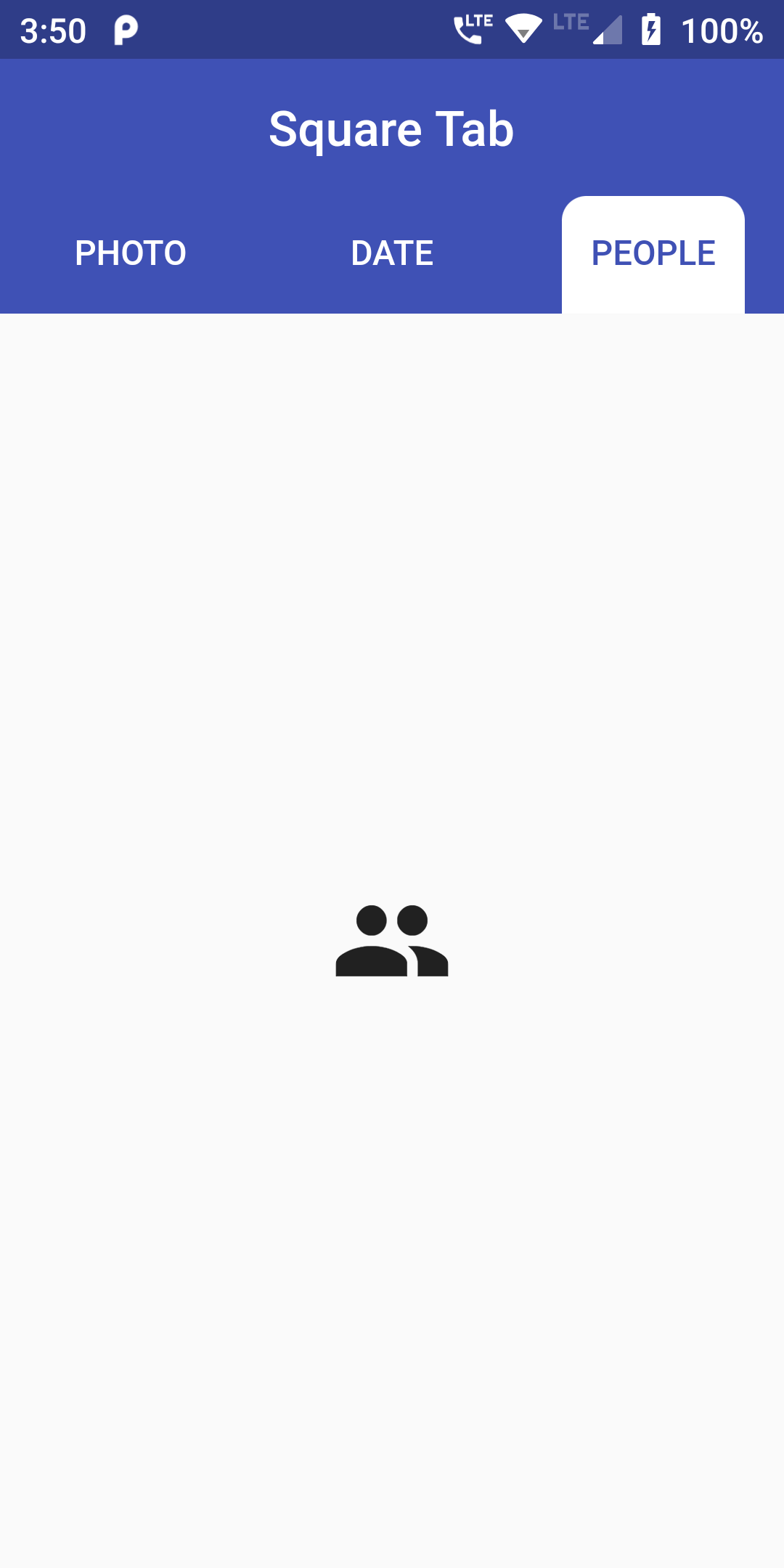

Square tab style

Square style can be done by changing small code in the previous one. BorderRadius of the boxDecoration can be changed by adding 10 for both leftTop and rightTop.
You can add this Square TabBar code :
 TabBar(
      labelColor: Colors.indigo,
      unselectedLabelColor: Colors.white,
      indicatorSize: TabBarIndicatorSize.label,
      indicator: BoxDecoration(
          borderRadius: BorderRadius.only(
              topLeft: Radius.circular(10),
              topRight: Radius.circular(10)),
          color: Colors.white),
      tabs: [
        Tab(
          child: Align(
            alignment: Alignment.center,
            child: Text("PHOTO"),
          ),
        ),
        Tab(
          child: Align(
            alignment: Alignment.center,
            child: Text("DATE"),
          ),
        ),
        Tab(
          child: Align(
            alignment: Alignment.center,
            child: Text("PEOPLE"),
          ),
        ),
      ]
  ),
),
body: TabBarView(children: [
  Icon(Icons.photo ,size: 50,),
  Icon(Icons.date_range ,size: 50,),
  Icon(Icons.people ,size: 50,),
]),


Complete Code Square TabBar  in flutter
Main.dart
import 'package:flutter/material.dart';


void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'App Design',
      home: MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  MyHomePage({Key key, this.title}) : super(key: key);


  final String title;

  @override
  _MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  int _counter = 0;

  void _incrementCounter() {
    setState(() {
      _counter++;
    });
  }

  @override
  Widget build(BuildContext context) {
    return DefaultTabController(
        length: 3,
        child: Scaffold(
          appBar: AppBar(
            centerTitle: true,
            title: Text('Square Tab',style: TextStyle(color: Colors.white),),
            backgroundColor: Colors.indigo,
            elevation: 0,
            bottom: TabBar(
                labelColor: Colors.indigo,
                unselectedLabelColor: Colors.white,
                indicatorSize: TabBarIndicatorSize.label,
                indicator: BoxDecoration(
                    borderRadius: BorderRadius.only(
                        topLeft: Radius.circular(10),
                        topRight: Radius.circular(10)),
                    color: Colors.white),
                tabs: [
                  Tab(
                    child: Align(
                      alignment: Alignment.center,
                      child: Text("PHOTO"),
                    ),
                  ),
                  Tab(
                    child: Align(
                      alignment: Alignment.center,
                      child: Text("DATE"),
                    ),
                  ),
                  Tab(
                    child: Align(
                      alignment: Alignment.center,
                      child: Text("PEOPLE"),
                    ),
                  ),
                ]
            ),
          ),
          body: TabBarView(children: [
            Icon(Icons.photo ,size: 50,),
            Icon(Icons.date_range ,size: 50,),
            Icon(Icons.people ,size: 50,),
          ]),
        )
    );
  }
}
