How To Set Up Diamond Tabbar With Flutter Using Android

admin_img Posted By Bajarangi soft , Posted On 23-09-2020

Customizing the style of the tabs indicator in Flutter can be done with simple lines of code without implementing our own widget.

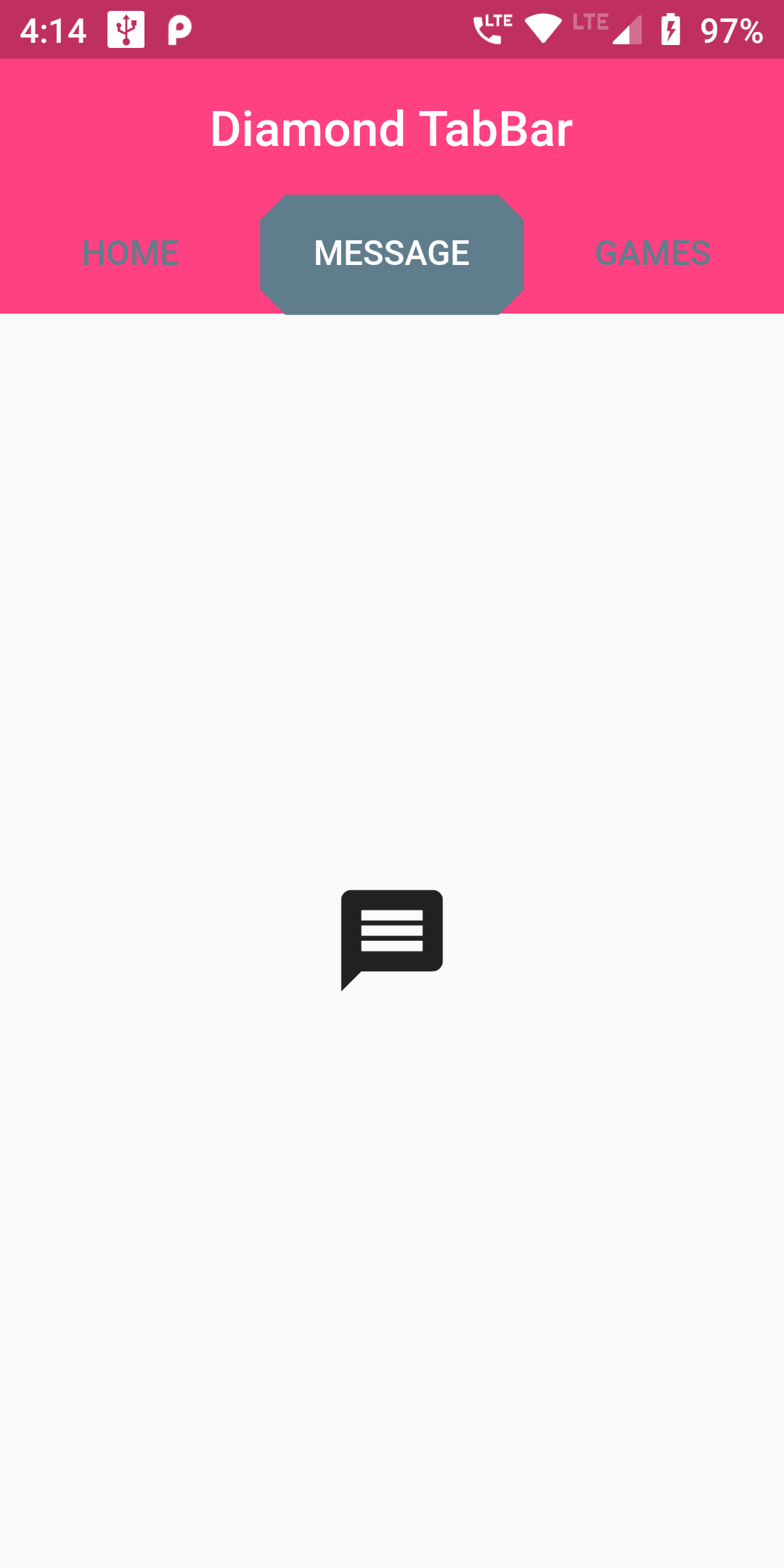

How to create Diamond tabBar in flutter app

Diamond Tab Style
You can get Diamond tab style by adding ShapeDecoration with BeveledRectangleBorder for the shape parameter for the ShapeDecoration widget. BeveledRectangleBorder will allow you to add flatten corner instead of round corners.
You can add this Diamond TabBar code :

TabBar(
      unselectedLabelColor: Colors.blueGrey,
      indicatorPadding: EdgeInsets.only(left: 30, right: 30),
      indicator: ShapeDecoration(
          color: Colors.blueGrey,
          shape: BeveledRectangleBorder(
              borderRadius: BorderRadius.circular(10),
              side: BorderSide(
                color: Colors.blueGrey,
              )
          )
      ),
      tabs: [
        Tab(
          child: Align(
            alignment: Alignment.center,
            child: Text("HOME"),
          ),
        ),
        Tab(
          child: Align(
            alignment: Alignment.center,
            child: Text("MESSAGE"),
          ),
        ),
        Tab(
          child: Align(
            alignment: Alignment.center,
            child: Text("GAMES"),
          ),
        ),
      ]),
),
body: TabBarView(children: [
  Icon(Icons.home, size: 50),
  Icon(Icons.message, size: 50),
  Icon(Icons.games, size: 50),
]),


Complete Code Diamond TabBar  in flutter
Main.dart
import 'package:flutter/material.dart';


void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'App Design',
      home: MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  MyHomePage({Key key, this.title}) : super(key: key);


  final String title;

  @override
  _MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  int _counter = 0;

  void _incrementCounter() {
    setState(() {
      _counter++;
    });
  }

  @override
  Widget build(BuildContext context) {
    return DefaultTabController(
        length: 3,
        child: Scaffold(
          appBar: AppBar(
            centerTitle: true,
            title: Text('Diamond TabBar'),
            backgroundColor: Colors.pinkAccent,
            elevation: 0,
            bottom: TabBar(
                unselectedLabelColor: Colors.blueGrey,
                indicatorPadding: EdgeInsets.only(left: 30, right: 30),
                indicator: ShapeDecoration(
                    color: Colors.blueGrey,
                    shape: BeveledRectangleBorder(
                        borderRadius: BorderRadius.circular(10),
                        side: BorderSide(
                          color: Colors.blueGrey,
                        )
                    )
                ),
                tabs: [
                  Tab(
                    child: Align(
                      alignment: Alignment.center,
                      child: Text("HOME"),
                    ),
                  ),
                  Tab(
                    child: Align(
                      alignment: Alignment.center,
                      child: Text("MESSAGE"),
                    ),
                  ),
                  Tab(
                    child: Align(
                      alignment: Alignment.center,
                      child: Text("GAMES"),
                    ),
                  ),
                ]),
          ),
          body: TabBarView(children: [
            Icon(Icons.home, size: 50),
            Icon(Icons.message, size: 50),
            Icon(Icons.games, size: 50),
          ]),
        )
    );
  }
}
