Circular Notched Rectangle With Example In Flutter Using Android

admin_img Posted By Bajarangi soft , Posted On 23-09-2020

circular notched rectangle example in flutter

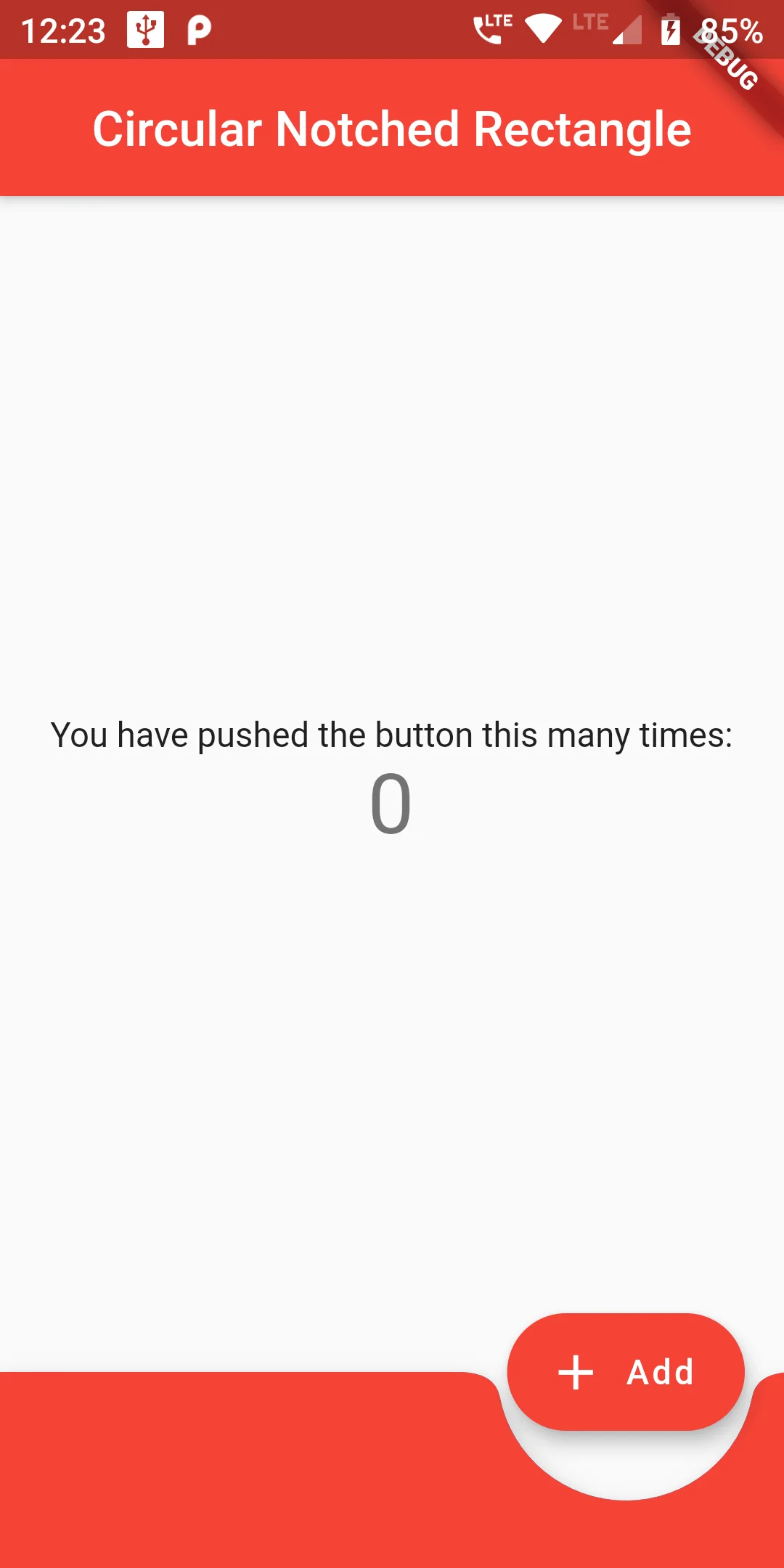

Circular Notched Rectangle example in flutter android

 Now, We will create the Stateful Widget and inside the Scaffold widget we will add the following code:
You can add this Circular Notched Rectangle  code :

floatingActionButton: new FloatingActionButton.extended(
  onPressed: _incrementCounter,
  tooltip: 'Increment',
  icon: new Icon(Icons.add),
  label: const Text("Add",),
  backgroundColor: Colors.red,
),
floatingActionButtonLocation: FloatingActionButtonLocation.endDocked,
bottomNavigationBar: BottomAppBar(
  clipBehavior: Clip.antiAlias,
  color: Colors.blue,
  shape: CircularNotchedRectangle(),
  child: Material(
    child: SizedBox(width: double.infinity, height: 80.0,),
    color: Colors.red,
  ),
),

Complete Code  Circular Notched Rectangle in flutter
Main.dart
import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowMaterialGrid: false,
      title: 'Flutter Demo',

      home: MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }
}

class MyHomePage extends StatefulWidget {
  MyHomePage({Key key, this.title}) : super(key: key);


  final String title;

  @override
  _MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  int _counter = 0;

  void _incrementCounter() {
    setState(() {
      _counter++;
    });
  }

  @override
  Widget build(BuildContext context) {

    return new Scaffold(
      appBar: new AppBar(
        centerTitle: true,
        title: new Text('Circular Notched Rectangle'),
        backgroundColor: Colors.red,
      ),
      body: new Center(
        child: new Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: <Widget>[
            new Text(
              'You have pushed the button this many times:',
            ),
            new Text(
              '$_counter',
              style: Theme.of(context).textTheme.display1,
            ),
          ],
        ),
      ),
      floatingActionButton: new FloatingActionButton.extended(
        onPressed: _incrementCounter,
        tooltip: 'Increment',
        icon: new Icon(Icons.add),
        label: const Text("Add",),
        backgroundColor: Colors.red,
      ),
      floatingActionButtonLocation: FloatingActionButtonLocation.endDocked,
      bottomNavigationBar: BottomAppBar(
        clipBehavior: Clip.antiAlias,
        color: Colors.blue,
        shape: CircularNotchedRectangle(),
        child: Material(
          child: SizedBox(width: double.infinity, height: 80.0,),
          color: Colors.red,
        ),
      ),
    );
  }
}
