Step 1:
Create Index.php file and implement code as below
<h2 id='showCD'></h2> <table id="demo" class="table"></table>
Step 2:
Create demo.xml file and implement code as below.
<CATALOG> <CD> <TITLE>Empire Burlesque</TITLE> <ARTIST>Bob Dylan</ARTIST> <COUNTRY>USA</COUNTRY> <COMPANY>Columbia</COMPANY> <PRICE>10.90</PRICE> <YEAR>1985</YEAR> </CD> <CD> <TITLE>Hide your heart</TITLE> <ARTIST>Bonnie Tyler</ARTIST> <COUNTRY>UK</COUNTRY> <COMPANY>CBS Records</COMPANY> <PRICE>9.90</PRICE> <YEAR>1988</YEAR> </CD> <CD> <TITLE>Greatest Hits</TITLE> <ARTIST>Dolly Parton</ARTIST> <COUNTRY>USA</COUNTRY> <COMPANY>RCA</COMPANY> <PRICE>9.90</PRICE> <YEAR>1982</YEAR> </CD> <CD> <TITLE>Still got the blues</TITLE> <ARTIST>Gary Moore</ARTIST> <COUNTRY>UK</COUNTRY> <COMPANY>Virgin records</COMPANY> <PRICE>10.20</PRICE> <YEAR>1990</YEAR> </CD> <CD> <TITLE>Eros</TITLE> <ARTIST>Eros Ramazzotti</ARTIST> <COUNTRY>EU</COUNTRY> <COMPANY>BMG</COMPANY> <PRICE>9.90</PRICE> <YEAR>1997</YEAR> </CD> <CD> <TITLE>One night only</TITLE> <ARTIST>Bee Gees</ARTIST> <COUNTRY>UK</COUNTRY> <COMPANY>Polydor</COMPANY> <PRICE>10.90</PRICE> <YEAR>1998</YEAR> </CD> <CD> <TITLE>Sylvias Mother</TITLE> <ARTIST>Dr.Hook</ARTIST> <COUNTRY>UK</COUNTRY> <COMPANY>CBS</COMPANY> <PRICE>8.10</PRICE> <YEAR>1973</YEAR> </CD> <CD> <TITLE>Maggie May</TITLE> <ARTIST>Rod Stewart</ARTIST> <COUNTRY>UK</COUNTRY> <COMPANY>Pickwick</COMPANY> <PRICE>8.50</PRICE> <YEAR>1990</YEAR> </CD> <CD> <TITLE>Romanza</TITLE> <ARTIST>Andrea Bocelli</ARTIST> <COUNTRY>EU</COUNTRY> <COMPANY>Polydor</COMPANY> <PRICE>10.80</PRICE> <YEAR>1996</YEAR> </CD> <CD> <TITLE>When a man loves a woman</TITLE> <ARTIST>Percy Sledge</ARTIST> <COUNTRY>USA</COUNTRY> <COMPANY>Atlantic</COMPANY> <PRICE>8.70</PRICE> <YEAR>1987</YEAR> </CD> <CD> <TITLE>Black angel</TITLE> <ARTIST>Savage Rose</ARTIST> <COUNTRY>EU</COUNTRY> <COMPANY>Mega</COMPANY> <PRICE>10.90</PRICE> <YEAR>1995</YEAR> </CD> <CD> <TITLE>1999 Grammy Nominees</TITLE> <ARTIST>Many</ARTIST> <COUNTRY>USA</COUNTRY> <COMPANY>Grammy</COMPANY> <PRICE>10.20</PRICE> <YEAR>1999</YEAR> </CD> <CD> <TITLE>For the good times</TITLE> <ARTIST>Kenny Rogers</ARTIST> <COUNTRY>UK</COUNTRY> <COMPANY>Mucik Master</COMPANY> <PRICE>8.70</PRICE> <YEAR>1995</YEAR> </CD> <CD> <TITLE>Big Willie style</TITLE> <ARTIST>Will Smith</ARTIST> <COUNTRY>USA</COUNTRY> <COMPANY>Columbia</COMPANY> <PRICE>9.90</PRICE> <YEAR>1997</YEAR> </CD> </CATALOG>
Step 3:
Now we implement java script to display xml data in html div onclick of table row.
<script> var x,xmlhttp,xmlDoc xmlhttp = new XMLHttpRequest(); xmlhttp.open("GET", "demo.xml", false); xmlhttp.send(); xmlDoc = xmlhttp.responseXML; x = xmlDoc.getElementsByTagName("CD"); table="<tr><th>Artist</th><th>Title</th></tr>"; for (i = 0; i <x.length; i++) { table += "<tr onclick='displayCD(" + i + ")'><td>"; table += x[i].getElementsByTagName("ARTIST")[0].childNodes[0].nodeValue; table += "</td><td>"; table += x[i].getElementsByTagName("TITLE")[0].childNodes[0].nodeValue; table += "</td></tr>"; } document.getElementById("demo").innerHTML = table; function displayCD(i) { document.getElementById("showCD").innerHTML = "Artist: " + x[i].getElementsByTagName("ARTIST")[0].childNodes[0].nodeValue + "<br>Title: " + x[i].getElementsByTagName("TITLE")[0].childNodes[0].nodeValue + "<br>Year: " + x[i].getElementsByTagName("YEAR")[0].childNodes[0].nodeValue; } </script>

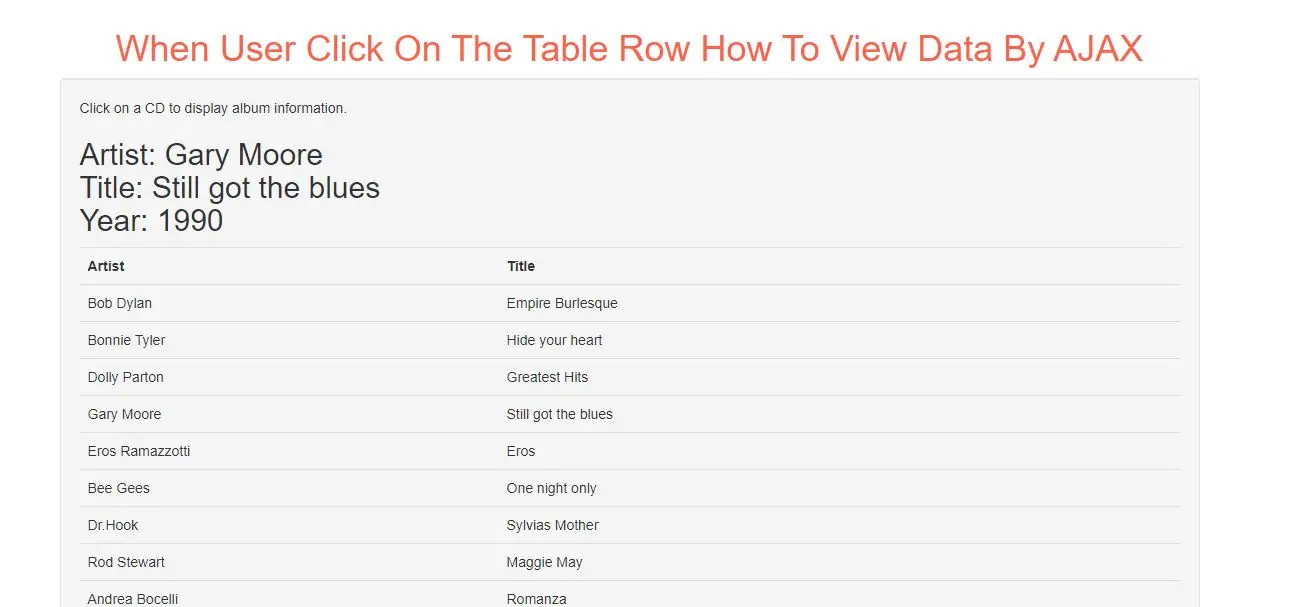

Complete Code For Displaying XML Data In An HTML Div On Click of Table Row Using AJAX
<!DOCTYPE html> <html> <head> <title>When User Click On The Table Row How To View Data By AJAX</title> <meta charset="utf-8"> <meta name="viewport" content="width=device-width, initial-scale=1"> <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css"> </head> <body> <div class="container"> <br> <div class="text-center"> <h1 id="color" style="color: tomato">When User Click On The Table Row How To View Data By AJAX</h1> </div> <div class="well"> <p>Click on a CD to display album information.</p> <h2 id='showCD'></h2> <table id="demo" class="table"></table> <script> var x,xmlhttp,xmlDoc xmlhttp = new XMLHttpRequest(); xmlhttp.open("GET", "demo.xml", false); xmlhttp.send(); xmlDoc = xmlhttp.responseXML; x = xmlDoc.getElementsByTagName("CD"); table="<tr><th>Artist</th><th>Title</th></tr>"; for (i = 0; i <x.length; i++) { table += "<tr onclick='displayCD(" + i + ")'><td>"; table += x[i].getElementsByTagName("ARTIST")[0].childNodes[0].nodeValue; table += "</td><td>"; table += x[i].getElementsByTagName("TITLE")[0].childNodes[0].nodeValue; table += "</td></tr>"; } document.getElementById("demo").innerHTML = table; function displayCD(i) { document.getElementById("showCD").innerHTML = "Artist: " + x[i].getElementsByTagName("ARTIST")[0].childNodes[0].nodeValue + "<br>Title: " + x[i].getElementsByTagName("TITLE")[0].childNodes[0].nodeValue + "<br>Year: " + x[i].getElementsByTagName("YEAR")[0].childNodes[0].nodeValue; } </script> </div> </div> </body> </html>
