How To Make Curved Header With Icons Using Flutter

admin_img Posted By Bajarangi soft , Posted On 23-09-2020

how to achieve a result that looks mostly like the one on the image, but it might need some more fine-tuning to fit your needs.The code has no comments provided, but you can get the idea by just changing the variables and refreshing the app

How To Make Curved Appbar with Icon In Flutter

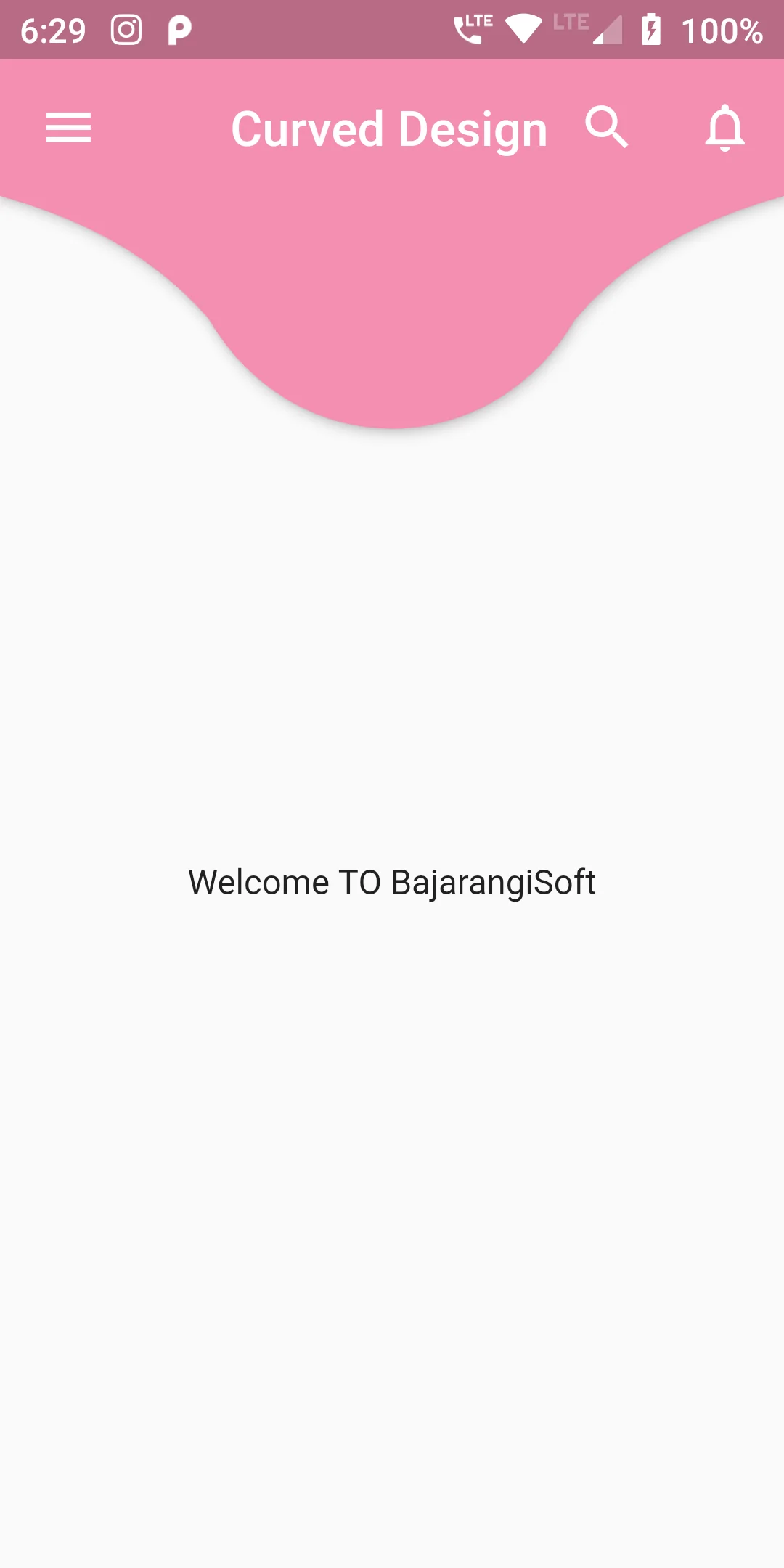

Curved Appbar WIth Icon
You Can Add This  Curved Appbar WIth Icon Code:

Path getOuterPath(Rect rect, {TextDirection textDirection}) {

  final double innerCircleRadius = 150.0;

  Path path = Path();
  path.lineTo(0, rect.height);
  path.quadraticBezierTo(rect.width / 2 - (innerCircleRadius / 2) - 30, rect.height + 15, rect.width / 2 - 75, rect.height + 50);
  path.cubicTo(
      rect.width / 2 - 40, rect.height + innerCircleRadius - 40,
      rect.width / 2 + 40, rect.height + innerCircleRadius - 40,
      rect.width / 2 + 75, rect.height + 50
  );
  path.quadraticBezierTo(rect.width / 2 + (innerCircleRadius / 2) + 30, rect.height + 15, rect.width, rect.height);
  path.lineTo(rect.width, 0.0);
  path.close();

  return path;
}




Complete Code For Curved Appbar WIth Icon In Flutter
main.dart




import 'package:flutter/material.dart';
import 'package:circular_menu/circular_menu.dart';

void main()=> runApp(MyApp());

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      title: "My App",
      home: MyHomePage(),
    );
  }
}


class MyHomePage extends StatefulWidget {
  @override
  _MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> with SingleTickerProviderStateMixin {

  String _colorName = 'No';
  Color _color = Colors.black;

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      home: Scaffold(
        appBar: AppBar(
          title: Text('Curved Design'),
          centerTitle: true,
          backgroundColor: Colors.pink[200],
          shape: CustomShapeBorder(),
          leading: Icon(Icons.menu),
          actions: <Widget>[
            IconButton(icon: Icon(Icons.search),onPressed: (){},),
            IconButton(icon: Icon(Icons.notifications_none),onPressed: (){},)
          ],
        ),
        body: Center(
          child: Text('Welcome TO BajarangiSoft'),
        ),
      ),
    );
  }
}

class CustomShapeBorder extends ContinuousRectangleBorder {
  @override
  Path getOuterPath(Rect rect, {TextDirection textDirection}) {

    final double innerCircleRadius = 150.0;

    Path path = Path();
    path.lineTo(0, rect.height);
    path.quadraticBezierTo(rect.width / 2 - (innerCircleRadius / 2) - 30, rect.height + 15, rect.width / 2 - 75, rect.height + 50);
    path.cubicTo(
        rect.width / 2 - 40, rect.height + innerCircleRadius - 40,
        rect.width / 2 + 40, rect.height + innerCircleRadius - 40,
        rect.width / 2 + 75, rect.height + 50
    );
    path.quadraticBezierTo(rect.width / 2 + (innerCircleRadius / 2) + 30, rect.height + 15, rect.width, rect.height);
    path.lineTo(rect.width, 0.0);
    path.close();

    return path;
  }
}
