How to Design Color Picker using jQuery

admin_img Posted By Bajarangi soft , Posted On 18-01-2021

A ColorPicker is a jQuery UI framework tool or widget which provides a color-palette dropdown box to the user to select the color for some colorful work. It is usually connected to a text-box so that user selection of color from the color palette can be transferred to the textbox. The dropdown box can be HSV (Hue, Saturation, Value) picker or predefined RGB color palette as shown in the image. It is a very useful user interface tool as the user on the other end need not remember or know the difficult color codes. This tool can be understood as an image or text editor.

Design Color Picker using jQuery

Step 1. Preparation – CRUD code

Database migration:
Schema::create('tags', function (Blueprint $table) {
    $table->increments('id');
    $table->string('name');
    $table->string('color');
    $table->timestamps();
});
Model app/Tag.php:
class Tag extends Model
{
    protected $fillable = ['name', 'color'];
}
Controller app/Http/Controllers/Admin/TagsController.php:
namespace App\Http\Controllers\Admin;

use App\Tag;
use Illuminate\Http\Request;
use App\Http\Controllers\Controller;
use App\Http\Requests\Admin\StoreTagsRequest;

class TagsController extends Controller
{
    public function index()
    {
        $tags = Tag::all();
        return view('admin.tags.index', compact('tags'));
    }

    public function create()
    {
        return view('admin.tags.create');
    }

    public function store(StoreTagsRequest $request)
    {
        $tag = Tag::create($request->all());
        return redirect()->route('admin.tags.index');
    }

    // ... other CRUD methods

}
In routes/web.php, there’s one line for resourceful Controller:
Route::resource('tags', 'Admin\TagsController');

To view it all, we need two blade files.

resources/views/admin/tags/index.blade.php:

<table class="table table-bordered table-striped datatable">
    <thead>
        <tr>
            <th>Name</th>
            <th>Color</th>
            <th> </th>
        </tr>
    </thead>

    <tbody>
        @if (count($tags) > 0)
            @foreach ($tags as $tag)
                <tr data-entry-id="{{ $tag->id }}">
                    <td field-key='name'>{{ $tag->name }}</td>
                    <td field-key='color'>{{ $tag->color }}</td>
                    <td>
                        <a href="{{ route('admin.tags.edit',[$tag->id]) }}" class="btn btn-xs btn-info">Edit</a>
                        {!! Form::open(array(
                            'style' => 'display: inline-block;',
                            'method' => 'DELETE',
                            'onsubmit' => "return confirm('Are you sure?');",
                            'route' => ['admin.tags.destroy', $tag->id])) !!}
                        {!! Form::submit('Delete', array('class' => 'btn btn-xs btn-danger')) !!}
                        {!! Form::close() !!}
                    </td>
                </tr>
            @endforeach
        @else
            <tr>
                <td colspan="3">No entries in table</td>
            </tr>
        @endif
    </tbody>
</table>
And resources/views/admin/tags/create.blade.php:
<h3 class="page-title">Tags</h3>
{!! Form::open(['method' => 'POST', 'route' => ['admin.tags.store']]) !!}

<div class="panel panel-default">
    <div class="panel-heading">
        Create
    </div>

    <div class="panel-body">
        <div class="row">
            <div class="col-xs-12 form-group">
                {!! Form::label('name', 'Name', ['class' => 'control-label']) !!}
                {!! Form::text('name', old('name'), ['class' => 'form-control', 'placeholder' => '', 'required' => '']) !!}
                <p class="help-block"></p>
                @if($errors->has('name'))
                    <p class="help-block">
                        {{ $errors->first('name') }}
                    </p>
                @endif
            </div>
        </div>
        <div class="row">
            <div class="col-xs-12 form-group">
                {!! Form::label('color', 'Color', ['class' => 'control-label']) !!}
                {!! Form::text('color', old('color'), ['class' => 'form-control', 'placeholder' => '']) !!}
                <p class="help-block"></p>
                @if($errors->has('color'))
                    <p class="help-block">
                        {{ $errors->first('color') }}
                    </p>
                @endif
            </div>
        </div>

    </div>
</div>

{!! Form::submit('Save', ['class' => 'btn btn-danger']) !!}
{!! Form::close() !!}

So, what we need to do here to adapt colorpicker:

  1. Adapt jQuery Colorpicker library for picking color
  2. Save result as #XXXXXX into the database
  3. In the table list view the color block instead of #XXXXXX value

Step 2. jQuery ColorPicker

For JavaScript part of actually picking the color, we will choose one of the most popular library called Bootstrap Colorpicker and will load it from Cloudflare CDN.

In our <head> section of HTML, we need to add this

<link href="https://cdnjs.cloudflare.com/ajax/libs/bootstrap-colorpicker/2.5.3/css/bootstrap-colorpicker.min.css" rel="stylesheet">

Where to put it – depends on the structure of your layout, for me it’s resources/views/layouts/app.blade.php.

Now, in the same app.blade.php at the bottom we need to load jQuery and then add a section for javascript code

...
<script src="//code.jquery.com/jquery-1.11.3.min.js"></script>

@yield('javascript')
</body>
</html>
Finally, in the resources/views/admin/tags/create.blade.php file, in the form, we add this at the bottom:
@section('javascript')
    <script src="https://cdnjs.cloudflare.com/ajax/libs/bootstrap-colorpicker/2.5.3/js/bootstrap-colorpicker.min.js"></script>
    <script>
        $('.colorpicker').colorpicker();
    </script>
@stop

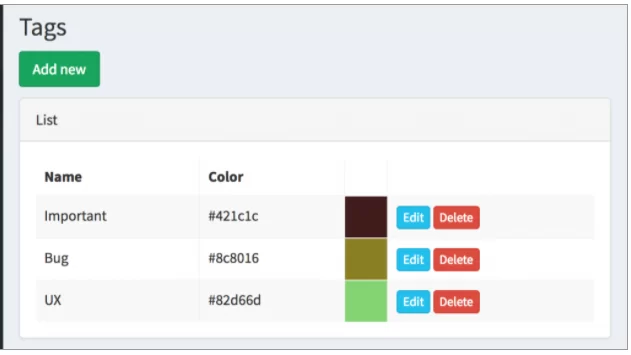

Step 3. Viewing color in the list

Let’s change those #421c1c values into actual colors, we need to change the internals of that td cell. To simplify, we just make additional td with the background color:
<td style="background-color:{{ $tag->color }}"> </td>
