Custom Liquid Progress Indicator Using Flutter Android App

admin_img Posted By Bajarangi soft , Posted On 13-10-2020

Features. Liquid circular progress indicator. Liquid linear progress indicator. Liquid custom progress indicator. Works similarly to Flutters own ProgressIndicator. Customise colors, borders, direction, etc.

Custom Liquid Progress Indicator Using Flutter Android App

Custom Liquid Progress Indicator

Step 1:  We cannot directly remove the time stamp from Custom Liquid Progress Bar Indicator  but using the intl.dart package we can easily filter the date stamp from time stamp. So open your flutter project’s pubspec.yaml in code

dependencies:
  flutter:
    sdk: flutter
  liquid_progress_indicator: ^0.3.2


Step 2: After done saving the pubspec.yaml file, Open your flutter project root folder in Command Prompt or Terminal and execute flutter pub get command.

flutter pub get

Step 3: Open your project’s main.dart file and import material.dart and  liquid_progress_indicator: ^0.3.2. dart package.

import 'package:liquid_progress_indicator/liquid_progress_indicator.dart';

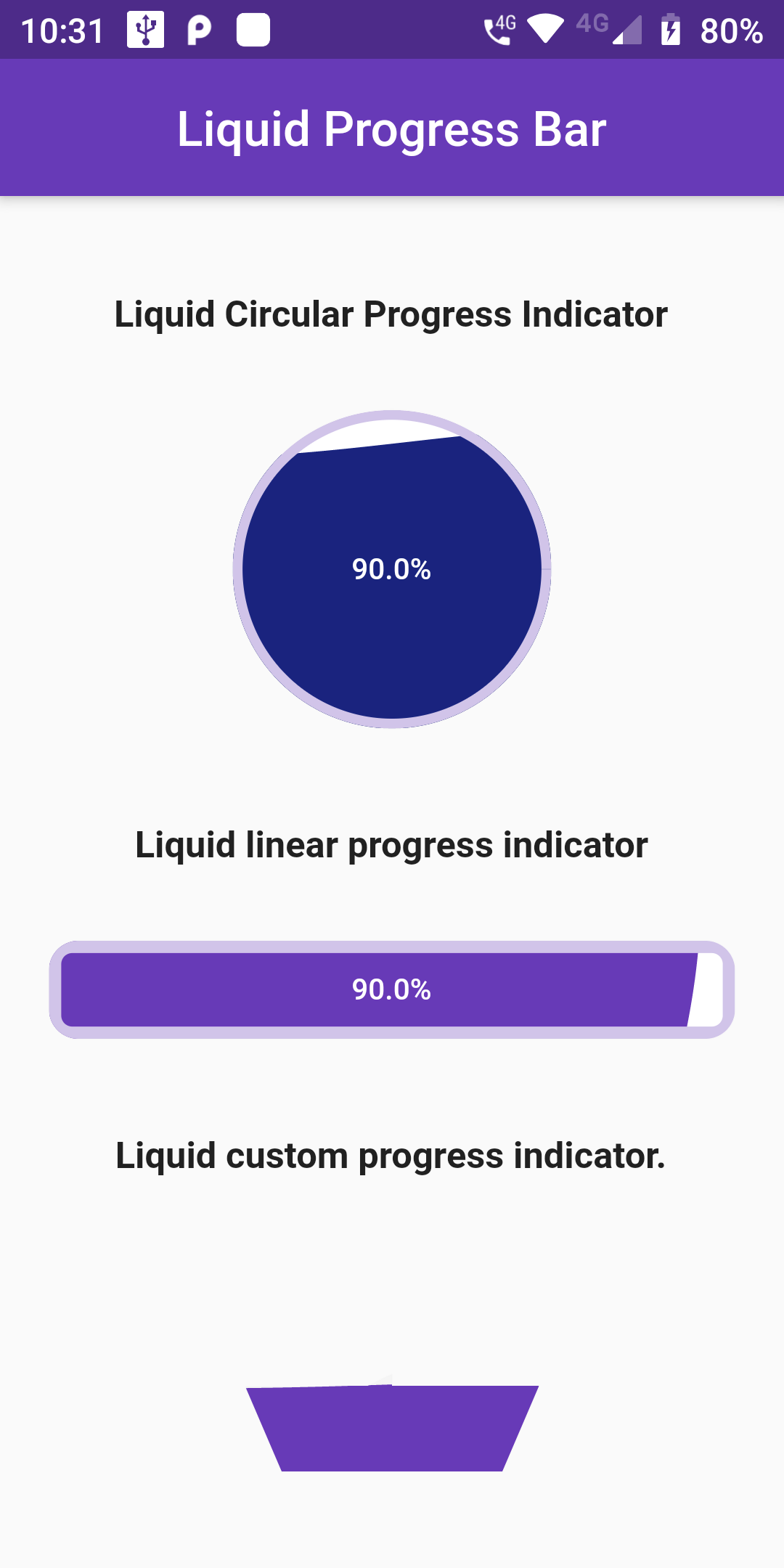

Complete Code For Custom Liquid Progress Indicator In Flutter
main.dart
import 'dart:async';
import 'package:flutter/material.dart';
import 'package:liquid_progress_indicator/liquid_progress_indicator.dart';
import 'dart:math' as math;
void main() => runApp(MyApp());
class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return  MaterialApp(
        debugShowCheckedModeBanner: false,
        home: CustomProgressIndicator()
    );
  }
}
class CustomProgressIndicator extends StatefulWidget {
  @override
  _CustomProgressIndicatorState createState() =>
      _CustomProgressIndicatorState();
}
class _CustomProgressIndicatorState extends State<CustomProgressIndicator> {
  double _height;
  double _width;

  double percent = 0.0;

  @override
  void initState() {
    Timer timer;
    timer = Timer.periodic(Duration(milliseconds: 300), (_) {
      print('Percent Update');
      setState(() {
        percent += 1;
        if (percent >= 100) {
          timer.cancel();
          // percent=0;
        }
      });
    });
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    _height = MediaQuery.of(context).size.height;
    _width = MediaQuery.of(context).size.width;

    return Scaffold(
      appBar: AppBar(
        title: Text("Liquid Progress Bar",
          style: TextStyle(color: Colors.white),
        ),
        backgroundColor: Colors.deepPurple,
        centerTitle: true,
      ),
      body: Container(
        height: _height,
        width: _width,
        padding: EdgeInsets.all(20),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.spaceAround,
          children: [
            Column(
              children: [
                Text('Liquid Circular Progress Indicator', style: TextStyle(
                      fontStyle: FontStyle.normal,
                      fontWeight: FontWeight.w700,
                      fontSize: 15
                ),),
                SizedBox(height: 30,),
                Container(
                  height: 130,
                  width: 130,
                  child: LiquidCircularProgressIndicator(
                    value: percent / 100,
                    // Defaults to 0.5.
                    valueColor: AlwaysStoppedAnimation(Color(0xFF1A237E)),
                    backgroundColor: Colors.white,
                    borderColor: Colors.deepPurple[100],
                    borderWidth: 4.0,
                    direction: Axis.vertical,
                    center: Text(percent.toString() + "%", style: TextStyle(
                          fontSize: 12.0,
                          fontWeight: FontWeight.w600,
                          color: Colors.white
                    ),),
                  ),
                ),
              ],
            ),
            Column(
              children: [
                Text('Liquid linear progress indicator', style: TextStyle(
                      fontStyle: FontStyle.normal,
                      fontWeight: FontWeight.w700,
                      fontSize: 15
                ),),
                SizedBox(height: 30,),
                Container(
                  height: 40,
                  child: LiquidLinearProgressIndicator(
                    value: percent / 100,
                    valueColor: AlwaysStoppedAnimation(Colors.deepPurple),
                    backgroundColor: Colors.white,
                    borderColor: Colors.deepPurple[100],
                    borderWidth: 5.0,
                    borderRadius: 12.0,
                    direction: Axis.horizontal,
                    center: Text(
                      percent.toString() + "%",
                      style: TextStyle(
                          fontSize: 12.0,
                          fontWeight: FontWeight.w600,
                          color: Colors.white),
                    ),
                  ),
                ),
              ],
            ),
            Column(
              children: [
                Text('Liquid custom progress indicator.', style: TextStyle(
                      fontStyle: FontStyle.normal,
                      fontWeight: FontWeight.w700,
                      fontSize: 15
                ),),
                Container(
                  child: LiquidCustomProgressIndicator(
                    value: percent / 100,
                    valueColor: AlwaysStoppedAnimation(Colors.deepPurple),
                    backgroundColor: Colors.grey[100],
                    direction: Axis.vertical,
                    shapePath: _buildBoatPath(),
                  ),
                ),
              ],
            ),
          ],
        ),
      ),
    );
  }
  Path _buildBoatPath() {
    return Path()
      ..moveTo(15, 120)
      ..lineTo(0, 85)
      ..lineTo(50, 85)
      ..lineTo(60, 80)
      ..lineTo(60, 85)
      ..lineTo(120, 85)
      ..lineTo(105, 120)
      ..close();
  }
}
