How To Create Image Magnifier Glass Using JavaScript

admin_img Posted By Bajarangi soft , Posted On 05-10-2020

In Java script we can create magnifier glass to view images so today we are going to discuss how to create magnifier glass using java script

How To Create Image Magnifier Glass Using JavaScript

Create an Image Magnifier Glass
Step 1:
 Create index.html file and implement below code in it.

<div class="img-magnifier-container">
    <img id="image" src="../image/demo4.jpg" width="600" height="400">
</div>


Step 2:Now we create css code for display button so implement below code in index.html file
The container must have a "relative" positioning.

<style>
    * {box-sizing: border-box;}

    .img-magnifier-container {
        position:relative;
    }

    .img-magnifier-glass {
        position: absolute;
        border: 3px solid #000;
        border-radius: 50%;
        cursor: none;
        /*Set the size of the magnifier glass:*/
        width: 100px;
        height: 100px;
    }
</style>


Step 3:Now we implement javascript to create magnifier glass.
<script>
    function magnify(imgID, zoom) {
        var img, glass, w, h, bw;
        img = document.getElementById(imgID);
        /*create magnifier glass:*/
        glass = document.createElement("DIV");
        glass.setAttribute("class", "img-magnifier-glass");
        /*insert magnifier glass:*/
        img.parentElement.insertBefore(glass, img);
        /*set background properties for the magnifier glass:*/
        glass.style.backgroundImage = "url('" + img.src + "')";
        glass.style.backgroundRepeat = "no-repeat";
        glass.style.backgroundSize = (img.width * zoom) + "px " + (img.height * zoom) + "px";
        bw = 3;
        w = glass.offsetWidth / 2;
        h = glass.offsetHeight / 2;
        /*execute a function when someone moves the magnifier glass over the image:*/
        glass.addEventListener("mousemove", moveMagnifier);
        img.addEventListener("mousemove", moveMagnifier);
        /*and also for touch screens:*/
        glass.addEventListener("touchmove", moveMagnifier);
        img.addEventListener("touchmove", moveMagnifier);
        function moveMagnifier(e) {
            var pos, x, y;
            /*prevent any other actions that may occur when moving over the image*/
            e.preventDefault();
            /*get the cursor's x and y positions:*/
            pos = getCursorPos(e);
            x = pos.x;
            y = pos.y;
            /*prevent the magnifier glass from being positioned outside the image:*/
            if (x > img.width - (w / zoom)) {x = img.width - (w / zoom);}
            if (x < w / zoom) {x = w / zoom;}
            if (y > img.height - (h / zoom)) {y = img.height - (h / zoom);}
            if (y < h / zoom) {y = h / zoom;}
            /*set the position of the magnifier glass:*/
            glass.style.left = (x - w) + "px";
            glass.style.top = (y - h) + "px";
            /*display what the magnifier glass "sees":*/
            glass.style.backgroundPosition = "-" + ((x * zoom) - w + bw) + "px -" + ((y * zoom) - h + bw) + "px";
        }
        function getCursorPos(e) {
            var a, x = 0, y = 0;
            e = e || window.event;
            /*get the x and y positions of the image:*/
            a = img.getBoundingClientRect();
            /*calculate the cursor's x and y coordinates, relative to the image:*/
            x = e.pageX - a.left;
            y = e.pageY - a.top;
            /*consider any page scrolling:*/
            x = x - window.pageXOffset;
            y = y - window.pageYOffset;
            return {x : x, y : y};
        }
    }
</script>


Step 4:Now Implement java script to Initiate the Magnify Function.

<script>
    /* Initiate Magnify Function
    with the id of the image, and the strength of the magnifier glass:*/
    magnify("image", 3);
</script>

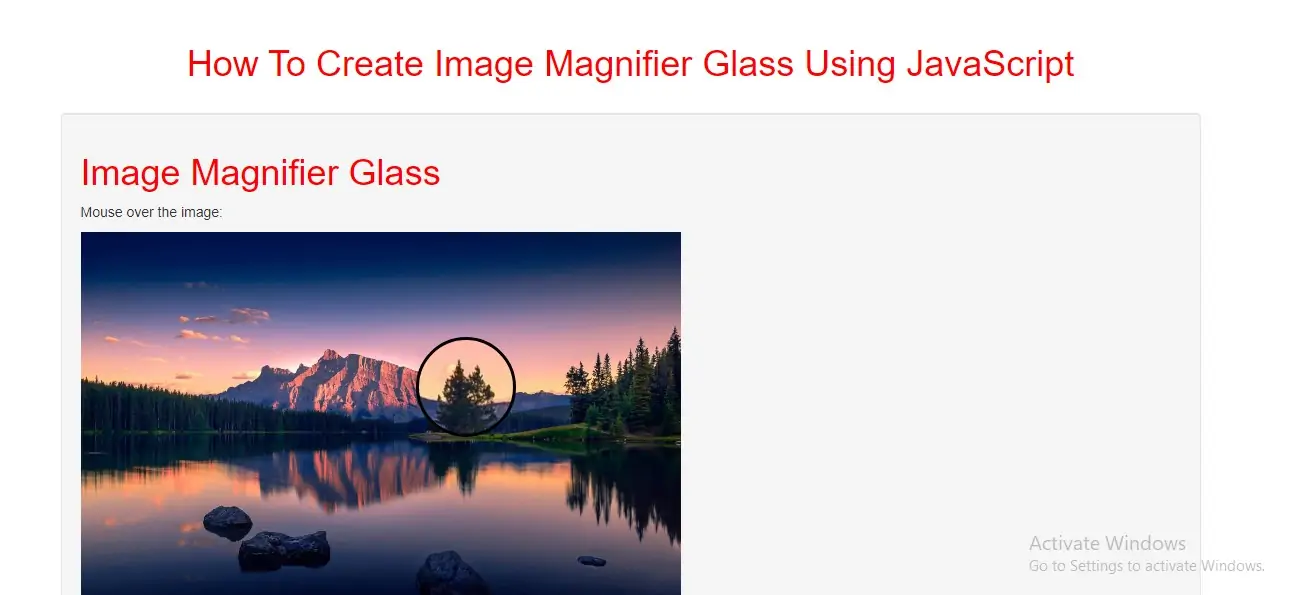

Complete Code For Creating Image Magnifier Glass Using JavaScript

<!DOCTYPE html>
<html>
<head>
    <title>How To Create Image Magnifier Glass Using JavaScript</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css">
</head>
<style>
    h1 {
        color: red;
    }
    * {
        box-sizing: border-box;
    }

    .img-magnifier-container {
        position: relative;
    }

    .img-magnifier-glass {
        position: absolute;
        border: 3px solid #000;
        border-radius: 50%;
        cursor: none;
        /*Set the size of the magnifier glass:*/
        width: 100px;
        height: 100px;
    }
</style>
<script>
    function magnify(imgID, zoom) {
        var img, glass, w, h, bw;
        img = document.getElementById(imgID);
        /*create magnifier glass:*/
        glass = document.createElement("DIV");
        glass.setAttribute("class", "img-magnifier-glass");
        /*insert magnifier glass:*/
        img.parentElement.insertBefore(glass, img);
        /*set background properties for the magnifier glass:*/
        glass.style.backgroundImage = "url('" + img.src + "')";
        glass.style.backgroundRepeat = "no-repeat";
        glass.style.backgroundSize = (img.width * zoom) + "px " + (img.height * zoom) + "px";
        bw = 3;
        w = glass.offsetWidth / 2;
        h = glass.offsetHeight / 2;
        /*execute a function when someone moves the magnifier glass over the image:*/
        glass.addEventListener("mousemove", moveMagnifier);
        img.addEventListener("mousemove", moveMagnifier);
        /*and also for touch screens:*/
        glass.addEventListener("touchmove", moveMagnifier);
        img.addEventListener("touchmove", moveMagnifier);

        function moveMagnifier(e) {
            var pos, x, y;
            /*prevent any other actions that may occur when moving over the image*/
            e.preventDefault();
            /*get the cursor's x and y positions:*/
            pos = getCursorPos(e);
            x = pos.x;
            y = pos.y;
            /*prevent the magnifier glass from being positioned outside the image:*/
            if (x > img.width - (w / zoom)) {
                x = img.width - (w / zoom);
            }
            if (x < w / zoom) {
                x = w / zoom;
            }
            if (y > img.height - (h / zoom)) {
                y = img.height - (h / zoom);
            }
            if (y < h / zoom) {
                y = h / zoom;
            }
            /*set the position of the magnifier glass:*/
            glass.style.left = (x - w) + "px";
            glass.style.top = (y - h) + "px";
            /*display what the magnifier glass "sees":*/
            glass.style.backgroundPosition = "-" + ((x * zoom) - w + bw) + "px -" + ((y * zoom) - h + bw) + "px";
        }

        function getCursorPos(e) {
            var a, x = 0, y = 0;
            e = e || window.event;
            /*get the x and y positions of the image:*/
            a = img.getBoundingClientRect();
            /*calculate the cursor's x and y coordinates, relative to the image:*/
            x = e.pageX - a.left;
            y = e.pageY - a.top;
            /*consider any page scrolling:*/
            x = x - window.pageXOffset;
            y = y - window.pageYOffset;
            return {x: x, y: y};
        }
    }
</script>
<body>
<div class="container">
    <br>
    <br>
    <div class="text-center">
        <h1>How To Create Image Magnifier Glass Using JavaScript</h1>
    </div>
    <br>
    <div class="well">
        <h1>Image Magnifier Glass</h1>
        <div class="img-magnifier-container">
            <img id="image" src="../image/demo4.jpg" width="600" height="400">
        </div>
        <script>
            /* Initiate Magnify Function
            with the id of the image, and the strength of the magnifier glass:*/
            magnify("image", 3);
        </script>
    </div>
    <div>
</body>
</html>
