How To Use SQL FOREIGN KEY STATEMENT With Example In PHP

admin_img Posted By Bajarangi soft , Posted On 18-09-2020

SQL FOREIGN KEY is a key used to link two tables together. SQL FOREIGN KEY is a collection of fields in one table that refers to the PRIMARY KEY in another table. SQL FOREIGN KEY reference from main table to sub table.

SQL FOREIGN KEY

SQL FOREIGN KEY.

Using SQL CREATE TABLE Statement
1.create a table called "Categories" in the management database that contains different datatype columns:

  • Cat_id with integer datatype.
  • Name  with varchar datatype.
  • Description  with varchar datatype.
  • Cat_id will be auto incremented on the insertion of data to Categories table that done by PRIMARY KEY (unique identification for each row).
 Categories table
CREATE TABLE Categories(
cat_id int not null auto_increment primary key,
Name varchar(255) not null,
Description text
) ;


2.Create a table called "Products" in the management database that contains different datatype columns:

  • ProductID with integer datatype.
  • ProductName  with varchar datatype.
  • ProductPrice with varchar datatype.
  • cat_id will be FOREIGN KEY.
 Products table
CREATE TABLE Products(
ProductID int not null auto_increment primary key,
ProductName varchar(355) not null,
ProductPrice decimal,
cat_id int not null,
FOREIGN KEY fk_cat(cat_id)
REFERENCES categories(cat_id)
ON UPDATE CASCADE
ON DELETE RESTRICT
);


The "cat_id" column in the "Categories" table is the PRIMARY KEY (Main table).The "cat_id " column in the "Products" table is a FOREIGN KEY (Sub table).Now Products table referring the Categories table so that user can also access both table

Use DESC command that display the "Categories" and "Products " table.



2.Complete code of SQL FOREIGN KEY  in PHP script.


<!DOCTYPE html>
<html lang="en">
<head>
    <title>How to use SQL FOREIGN KEY </title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css">
</head>
<body>
<div class="container">
    <br>
    <br>
    <div class="text-center">
        <h1>SQL FOREIGN KEY</h1>
    </div>
    <br>
    <div class="well">
        <?php
        $connect = mysqli_connect("localhost", "root", "", "management");
        if($connect === false){
            die("ERROR: Could not connect. " . mysqli_connect_error());
        }
        $sql_1 = "CREATE TABLE Categories(
                    cat_id int not null auto_increment primary key,
                    Name varchar(255) not null,
                    Description text
                    ) ";
            $sql_2 = "CREATE TABLE Products(
                            ProductID int not null auto_increment primary key,
                            ProductName varchar(355) not null,
                            ProductPrice decimal,
                            cat_id int not null,
                            FOREIGN KEY fk_cat(cat_id)
                            REFERENCES categories(cat_id)
                            ON UPDATE CASCADE
                            ON DELETE RESTRICT
                            );";
        if(mysqli_query($connect, $sql_1)){
            mysqli_query($connect,$sql_2);

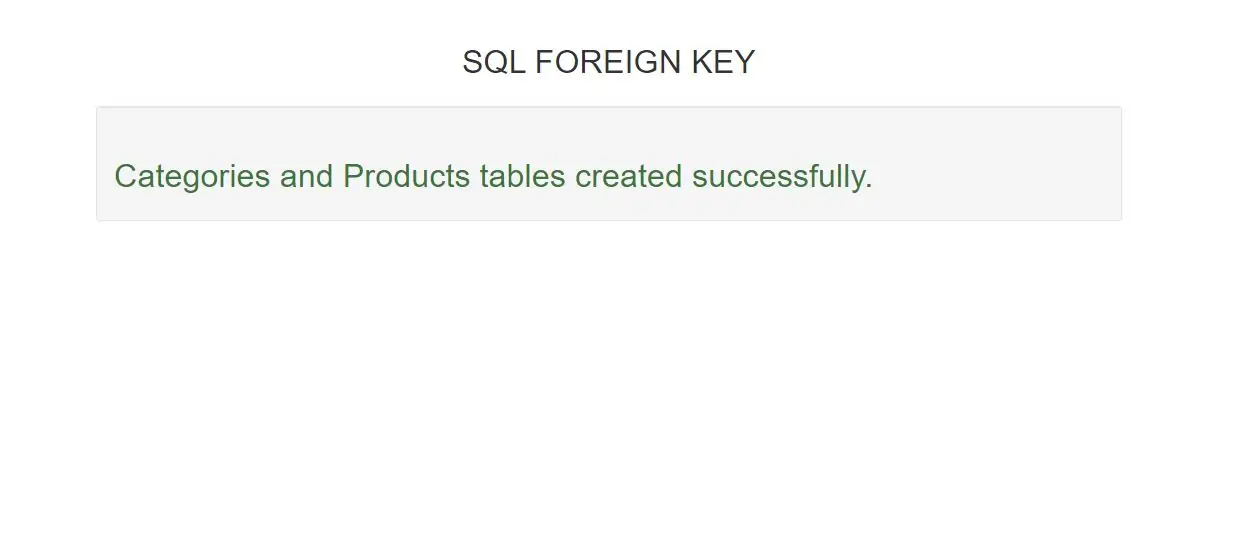

            echo "<br><h1 class='text-success'>Categories and Products tables created successfully.</h1>";
        } else{
            echo "ERROR: Could not able to execute $sql_1. " . mysqli_error($connect);
        }
        mysqli_close($connect);
        ?>
    </div>
    <br>
</div>
</body>
</html>
