How To Use CSS Transform Origin Property With HTML

Posted By Bajarangi soft , Posted On 05-11-2020

In CSS The transform-origin property allows you to change the position of transformed elements.2D transformations can change the x- and y-axis of an element. 3D transformations can also change the z-axis of an element.So today we discuss how to do it.

How To Use CSS Transform Origin Property With HTML

Using CSS set a rotated element's base placement.

#div1
{
    position: relative;
    height: 200px;
    width: 200px;
    margin: 50px;
    padding:10px;
    border: 1px solid black;
}

#div2
{
    color: white;
    padding:50px;
    position: absolute;
    border: 1px solid black;
    background-color: red;
    transform: rotate(45deg);
    transform-origin:20% 40%;
    -ms-transform: rotate(45deg); /* IE 9 */
    -ms-transform-origin:20% 40%; /* IE 9 */
}

Complete Code For Using CSS Transform Origin Property With HTML.

<html>
<head>
    <title>How To Use CSS Transform Origin Property With HTML</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap.min.css"/>
</head>
<style>
    body {
        background: #c7254e;
    }
    #div1
    {
        position: relative;
        height: 200px;
        width: 200px;
        margin: 50px;
        padding:10px;
        border: 1px solid black;
    }

    #div2
    {
        color: white;
        padding:50px;
        position: absolute;
        border: 1px solid black;
        background-color: red;
        transform: rotate(45deg);
        transform-origin:20% 40%;
        -ms-transform: rotate(45deg); /* IE 9 */
        -ms-transform-origin:20% 40%; /* IE 9 */
    }
    .well{
        display: flex;
    }
    .padding{
        padding: 60px;
    }
    input[type=range] {
        -webkit-appearance: none;
        margin: 10px 0;
        width: 100%;
    }
    input[type=range]:focus {
        outline: none;
    }
    input[type=range]::-webkit-slider-runnable-track {
        width: 100%;
        height: 12.8px;
        cursor: pointer;
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
        background: #51A351;
        border-radius: 25px;
        border: 0px solid #000101;
    }
    input[type=range]::-webkit-slider-thumb {
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
        border: 0px solid #000000;
        height: 20px;
        width: 39px;
        border-radius: 7px;
        background: #65001c;
        cursor: pointer;
        -webkit-appearance: none;
        margin-top: -3.6px;
    }
    input[type=range]:focus::-webkit-slider-runnable-track {
        background: #51A351;
    }
    input[type=range]::-moz-range-track {
        width: 100%;
        height: 12.8px;
        cursor: pointer;
        animate: 0.2s;
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
        background: #51A351;
        border-radius: 25px;
        border: 0px solid #000101;
    }
    input[type=range]::-moz-range-thumb {
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
        border: 0px solid #000000;
        height: 20px;
        width: 39px;
        border-radius: 7px;
        background: #65001c;
        cursor: pointer;
    }
    input[type=range]::-ms-track {
        width: 100%;
        height: 12.8px;
        cursor: pointer;
        animate: 0.2s;
        background: transparent;
        border-color: transparent;
        border-width: 39px 0;
        color: transparent;
    }
    input[type=range]::-ms-fill-lower {
        background: #ac51b5;
        border: 0px solid #000101;
        border-radius: 50px;
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
    }
    input[type=range]::-ms-fill-upper {
        background: #ac51b5;
        border: 0px solid #000101;
        border-radius: 50px;
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
    }
    input[type=range]::-ms-thumb {
        box-shadow: 0px 0px 0px #000000, 0px 0px 0px #0d0d0d;
        border: 0px solid #000000;
        height: 20px;
        width: 39px;
        border-radius: 7px;
        background: #65001c;
        cursor: pointer;
    }
    input[type=range]:focus::-ms-fill-lower {
        background: #51A351;
    }
    input[type=range]:focus::-ms-fill-upper {
        background: #51A351;
    }

    body {
        padding: 30px;
    }
</style>
<body>
<br/><br/>
<div class="container">
    <br>
    <div class="text-center">
        <h1 id="color" style="color: white;">CSS Transform Origin Property With HTML</h1>
    </div>
    <br>
    <div class="col-md-12">
    <div class="well">
        <div>

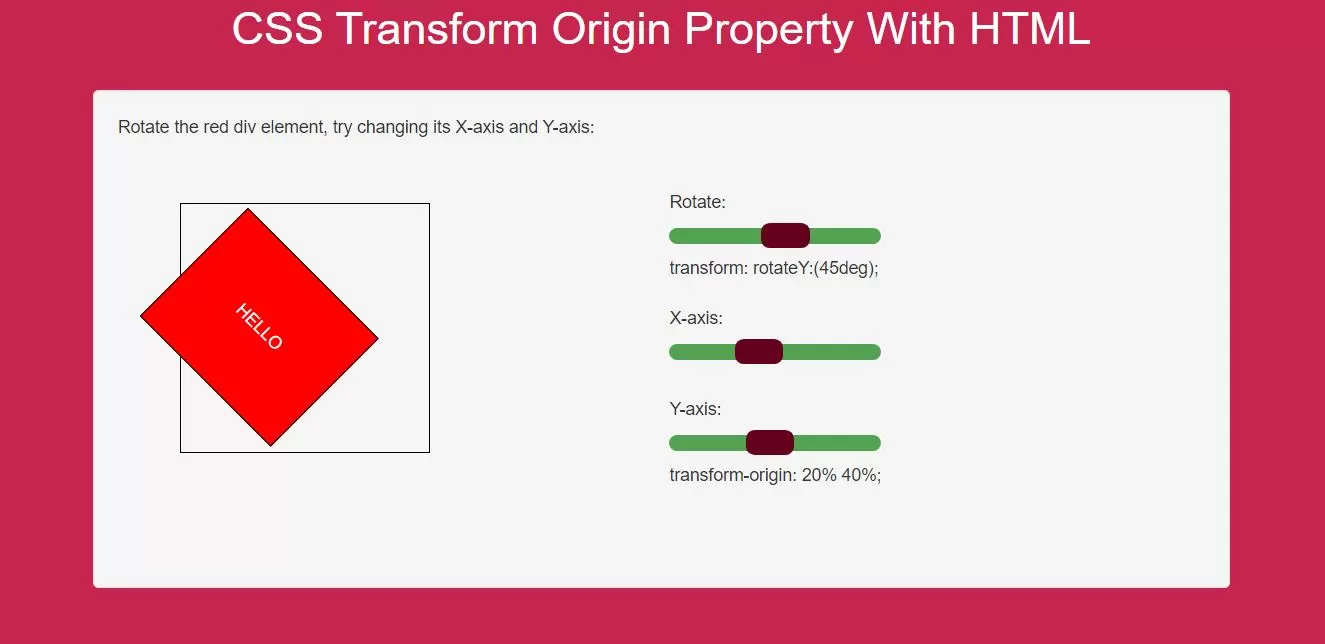

            <p>Rotate the red div element, try changing its X-axis and Y-axis:</p>

            <div id="div1">
                <div id="div2">HELLO</div>
            </div>
        </div>

         <div class="padding" >
             Rotate:
             <input type="range" min="-360" max="360" value="45" onchange="changeRot(this.value)" />
             transform: rotateY:(<span id="persp">45deg</span>);
             <br><br>
             X-axis:<input type="range"  min="-100" max="200" value="20" onchange="changeOrg()" id="ox" /><br>
             Y-axis:<input type="range"  min="-100" max="200" value="40" onchange="changeOrg()" id="oy" />
             transform-origin: <span id="origin">20% 40%</span>;
         </div>
       </div>
    </div>
</div>
</body>
</html>
<script>
    function changeRot(value)
    {
        document.getElementById('div2').style.transform="rotate(" + value + "deg)";
        document.getElementById('div2').style.msTransform="rotate(" + value + "deg)";
        document.getElementById('div2').style.webkitTransform="rotate(" + value + "deg)";
        document.getElementById('div2').style.MozTransform="rotate(" + value + "deg)";
        document.getElementById('div2').style.OTransform="rotate(" + value + "deg)";
        document.getElementById('persp').innerHTML=value + "deg";
    }

    function changeOrg()
    {
        var x=document.getElementById('ox').value;
        var y=document.getElementById('oy').value;
        document.getElementById('div2').style.transformOrigin=x + '% ' + y + '%';
        document.getElementById('div2').style.msTransformOrigin=x + '% ' + y + '%';
        document.getElementById('div2').style.webkitTransformOrigin=x + '% ' + y + '%';
        document.getElementById('div2').style.MozTransformOrigin=x + '% ' + y + '%';
        document.getElementById('div2').style.OTransformOrigin=x + '% ' + y + '%';
        document.getElementById('origin').innerHTML=x + "% " + y + "%";
    }
</script>
