How To Create Simple Cart Design Using Flutter Android App

admin_img Posted By Bajarangi soft , Posted On 29-10-2020

The BLoC pattern in Flutter is a mature​ way to manage state in a Flutter app. In this tutorial, we’ll be building a simple shopping cart app that uses the BLoC pattern.

How To Create Simple Cart Design Using Flutter Android App

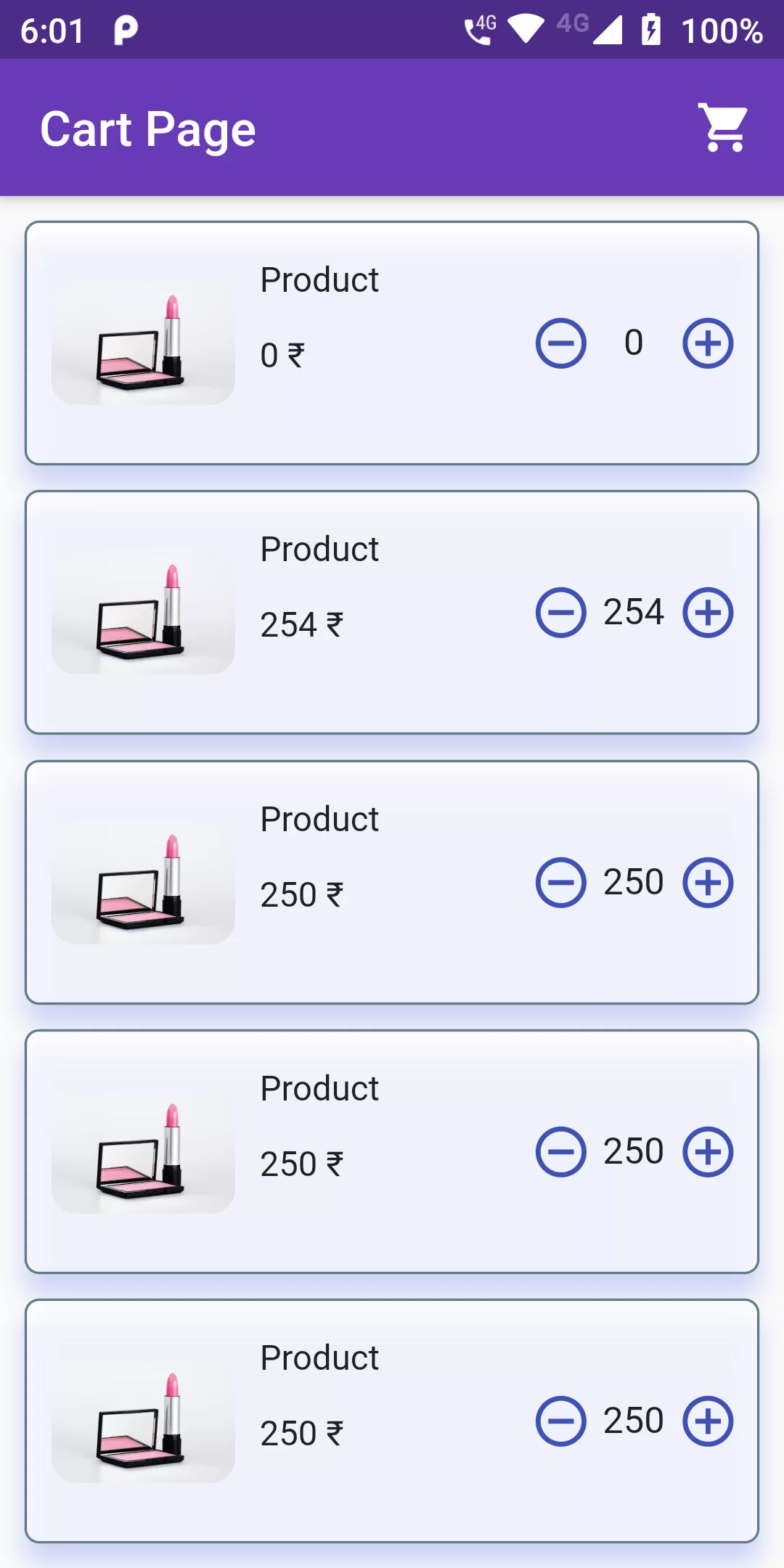

Simple Cart Design

Step 1
 The first step is to create a new folder and name it "assets" at the root of the Flutter project directory as shown in the image. Now add the image inside the newly created assets directory.

Step 2
The image added inside the assets/images folder won't be accessible until we list it in the assets section of our pubspec.yaml file. In step 2, list the image file under the assets section of pubspec.yaml as shown below


flutter:
  assets:
   - assets/images/

Complete Code For Simple Cart Design In Flutter
Main.dart
import 'dart:async';
import 'package:flutter/material.dart';

void main() => runApp( MyApp());

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return  MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'Flutter Demo',
      home:  MyHomePage(),
    );
  }
}

class Item {
  String itemname;
  String itemtype;
  int numberofitems;

  Item({this.itemname, this.itemtype, this.numberofitems});
}

class MyHomePage extends StatefulWidget {
  @override
  _MyHomePageState createState() =>  _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  Future callback;

  @override
  void initState() {
    callback = _getItemList();
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    var futureBuilder =  FutureBuilder(
      future: callback,
      builder: (BuildContext context, AsyncSnapshot snapshot) {
        switch (snapshot.connectionState) {
          case ConnectionState.none:
          case ConnectionState.waiting:
            return  Center(child: CircularProgressIndicator());
          default:
            if (snapshot.hasError)
              return  Text('Error: ${snapshot.error}');
            else
              return createListView(context, snapshot);
        }
      },
    );

    return  Scaffold(
      appBar:  AppBar(
        backgroundColor: Colors.deepPurple,
        title:  Text("Cart Page"),
        actions: [
          IconButton(icon: Icon(Icons.shopping_cart), onPressed: (){})
        ],
      ),
      body: futureBuilder,
    );
  }

  Future<List<Item>> _getItemList() async {
    var values =  List<Item>();
    values.add(
        Item(itemname: "Product",
            itemtype: "assets/images/img.jpg",
            numberofitems: 0
        ));
    values.add(
        Item(itemname: "Product",
            itemtype: "assets/images/img.jpg",
            numberofitems: 250
        ));
    values.add(
        Item(itemname: "Product",
            itemtype: "assets/images/img.jpg",
            numberofitems: 250
        ));
    values.add(
        Item(itemname: "Product",
            itemtype: "assets/images/img.jpg",
            numberofitems: 250
        ));
    values.add(
        Item(itemname: "Product",
            itemtype: "assets/images/img.jpg",
            numberofitems: 250
        ));
    await  Future.delayed( Duration(seconds: 2));
    return values;
  }


  Widget createListView(BuildContext context, AsyncSnapshot snapshot) {
    List<Item> itemList = snapshot.data;
    return  ListView.builder(
        itemCount: itemList.length,
        itemBuilder: (BuildContext context, int index) {
          {
            return Container(
              height: 100,
              margin: EdgeInsets.only(left: 10, right: 10, top: 10),
              decoration: BoxDecoration(
                color: Colors.white70,
                border: Border.all(width: 1.0, color: Colors.blueGrey),
                borderRadius: BorderRadius.circular(6.0),
                boxShadow: [
                  BoxShadow(
                      color: Color(0xFF6078ea).withOpacity(.3),
                      offset: Offset(0.0, 8.0),
                      blurRadius: 8.0),
                ],
              ),
              child: Row(
                children: <Widget>[
                  Container(
                    width: 75,
                    child: ClipRRect(
                      borderRadius:  BorderRadius.circular(10.0),
                      child: Image(
                        image: AssetImage('assets/images/img.jpg'),
                        fit: BoxFit.cover,
                      ),
                    ),
                    margin: EdgeInsets.only(left: 10),
                  ),
                  Expanded(
                    child: Container(
                      child: Column(
                        children: <Widget>[
                          Row(
                            children: <Widget>[
                              Expanded(
                                  child: Container(
                                      margin: EdgeInsets.only(
                                          left: 10, top: 15,
                                      ),
                                      child: Text(
                                        itemList[index].itemname,
                                      ))),
                            ],
                          ),
                          Row(
                            children: <Widget>[
                              Container(
                                  margin: EdgeInsets.only(
                                      left: 10, top: 15,
                                  ),
                                  child: Text(
                                    itemList[index].numberofitems.toString() +
                                        ' \u20B9 ',
                                  )),
                            ],
                          ),
                        ],
                      ),
                    ),
                  ),
                  Container(
                    margin: EdgeInsets.only(left: 10),
                    child: Row(
                      children: <Widget>[
                        InkWell(
                          onTap: () {
                            if (itemList[index].numberofitems > 0) {
                              setState(() {
                                itemList[index].numberofitems =
                                    itemList[index].numberofitems - 1;
                              });
                            }
                          },
                          child: Container(
                            width: 30,
                            child: Icon(
                              Icons.remove_circle_outline,
                              color: Colors.indigo,
                              size: 25,
                            ),
                          ),
                        ),
                        Container(
                          width: 30,
                          child: Center(
                              child: Text(
                                itemList[index].numberofitems.toString(),
                                style: TextStyle(fontSize: 15),
                              )),
                        ),
                        InkWell(
                          onTap: () {
                            setState(() {
                              itemList[index].numberofitems =
                                  itemList[index].numberofitems + 1;
                              print(
                                  ' ${itemList[index].itemname.toString()} ${itemList[index].numberofitems.toString()}');
                            });
                          },
                          child: Container(
                            margin: EdgeInsets.only(right: 5),
                            width: 30,
                            child: Icon(
                              Icons.add_circle_outline,
                              color: Colors.indigo,
                              size: 25,
                            ),
                          ),
                        ),
                      ],
                    ),
                  ),
                ],
              ),
            );
          }
          ;
        });
  }
}
