How Many Types Of Grids are There In Bootstrap

admin_img Posted By Bajarangi soft , Posted On 06-10-2020

Bootstrap's grid system allows up to 12 columns across the page If you do not want to use all 12 column individually, you can group the columns together to create wider columns Bootstrap's grid system is responsive, and the columns will re-arrange depending on the screen size: On a big screen it might look better with the content organized in three columns, but on a small screen it would be better if the content items were stacked on top of each other.

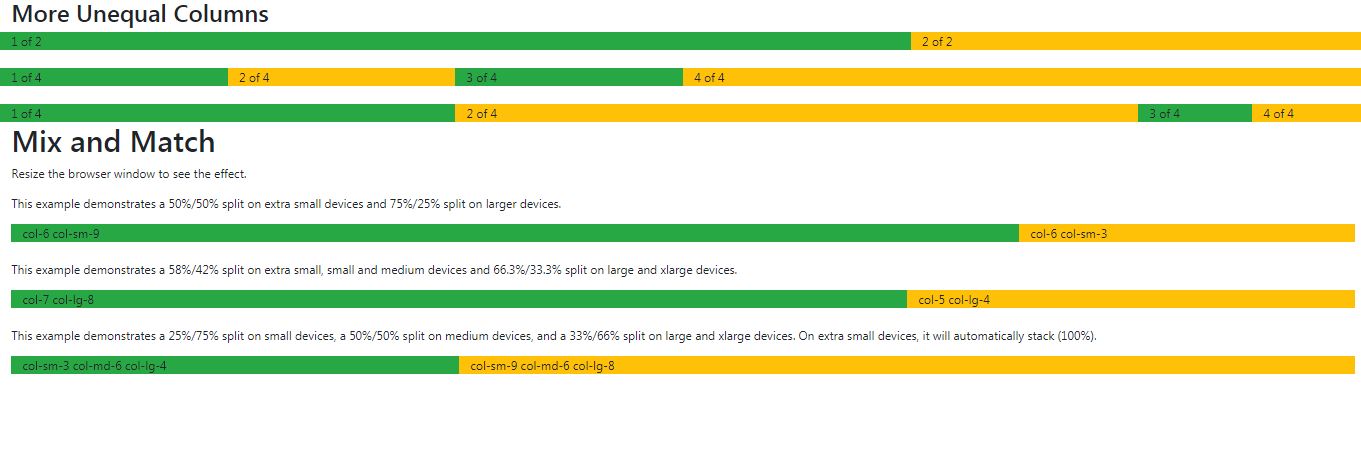

Bootstrap Grid Exsamples

1.Grid system Example-1

<!DOCTYPE html>
<html lang="en">
<head>
    <title>Bootstrap Example</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.5.2/css/bootstrap.min.css">
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.16.0/umd/popper.min.js"></script>
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.5.2/js/bootstrap.min.js"></script>
</head>
<body>

<div class="container-fluid">
    <h2>More Unequal Columns</h2>
    <div class="row">
        <div class="col-8 bg-success">1 of 2</div>
        <div class="col-4 bg-warning">2 of 2</div>
    </div>
    <br>
    <div class="row">
        <div class="col-2 bg-success">1 of 4</div>
        <div class="col-2 bg-warning">2 of 4</div>
        <div class="col-2 bg-success">3 of 4</div>
        <div class="col-6 bg-warning">4  of 4</div>
    </div>
    <br>
    <div class="row">
        <div class="col-4 bg-success">1 of 4</div>
        <div class="col-6 bg-warning">2 of 4</div>
        <div class="col bg-success">3 of 4</div>
        <div class="col bg-warning">4  of 4</div>
    </div>
</div>

</body>
</html>
2.Grid system Example-2
<!DOCTYPE html>
<html lang="en">
<head>
    <title>Bootstrap Example</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.5.2/css/bootstrap.min.css">
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.16.0/umd/popper.min.js"></script>
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.5.2/js/bootstrap.min.js"></script>
</head>
<body>

<div class="container-fluid">
    <h1>Mix and Match</h1>
    <p>Resize the browser window to see the effect.</p>
    <p>This example demonstrates a 50%/50% split on extra small devices and 75%/25% split on larger devices.</p>
    <div class="container-fluid">
        <div class="row">
            <div class="col-6 col-sm-9 bg-success">col-6 col-sm-9</div>
            <div class="col-6 col-sm-3 bg-warning">col-6 col-sm-3</div>
        </div>
    </div>
    <br>
    <p>This example demonstrates a 58%/42% split on extra small, small and medium devices and 66.3%/33.3% split on large and xlarge devices.</p>
    <div class="container-fluid">
        <div class="row">
            <div class="col-7 col-lg-8 bg-success">col-7 col-lg-8</div>
            <div class="col-5 col-lg-4 bg-warning">col-5 col-lg-4</div>
        </div>
    </div>
    <br>
    <p>This example demonstrates a 25%/75% split on small devices, a 50%/50% split on medium devices, and a 33%/66% split on large and xlarge devices. On extra small devices, it will automatically stack (100%).</p>
    <div class="container-fluid">
        <div class="row">
            <div class="col-sm-3 col-md-6 col-lg-4 bg-success">col-sm-3 col-md-6 col-lg-4</div>
            <div class="col-sm-9 col-md-6 col-lg-8 bg-warning">col-sm-9 col-md-6 col-lg-8</div>
        </div>
    </div>
</div>

</body>
</html>



3.Grid system Example-3

<!DOCTYPE html>
<html lang="en">
<head>
  <title>Bootstrap Example</title>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.5.2/css/bootstrap.min.css">
  <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
  <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.16.0/umd/popper.min.js"></script>
  <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.5.2/js/bootstrap.min.js"></script>
</head>
<body>

<div class="container-fluid">
  <h1>Responsive Auto Layout Columns</h1>
  <p>In Bootstrap 4, there is an easy way to create equal width columns: just use the <code>.col-lg</code> class on a specified number of col elements. Bootstrap will recognize how many columns there are, and each column will get the same width.</p>
  <p>If the screen size is <strong>less than 992px</strong>, the columns will stack horizontally.</p>
  <div class="container-fluid">
    <div class="row">
      <div class="col-lg bg-success">1 of 2</div>
      <div class="col-lg bg-warning">2 of 2</div>
    </div>
  </div>
  <br>

  <div class="container-fluid">
    <div class="row">
      <div class="col-lg bg-success">1 of 4</div>
      <div class="col-lg bg-warning">2 of 4</div>
      <div class="col-lg bg-success">3 of 4</div>
      <div class="col-lg bg-warning">4 of 4</div>
    </div>
  </div>
</div>

</body>
</html>
