Wave Curved Clipper Bottom Animation
You Can Add Wave Curved Clipper Animation Code:
Container(
child: Stack(
children: [
Positioned(
bottom:0,
right: animation.value,
child: ClipPath(
clipper: MyWaveClipper(),
child: Opacity(
opacity: 0.5,
child: Container(
color: Colors.blueAccent[100],
width: 900,
height: 200,
),
),
),
),
Positioned(
bottom:0,
left: animation.value, //value of left from animation controller
child: ClipPath(
clipper: MyWaveClipper(), //applying our custom clipper
child: Opacity(
opacity: 0.5,
child: Container(
color: Colors.blueAccent[100],
width:900,
height: 200,
),
),
),
),
]),
),
class MyWaveClipper extends CustomClipper<Path> {
@override
Path getClip(Size size) {
var path = new Path();
path.lineTo(0.0, 40.0);
path.lineTo(0.0, size.height);
path.lineTo(size.width, size.height);
path.lineTo(size.width, 40.0);
for (int i = 0; i < 10; i++) {
if (i % 2 == 0) {
path.quadraticBezierTo(
size.width - (size.width / 16) - (i * size.width / 8),
0.0,
size.width - ((i + 1) * size.width / 8),
size.height - 160);
} else {
path.quadraticBezierTo(
size.width - (size.width / 16) - (i * size.width / 8),
size.height - 120,
size.width - ((i + 1) * size.width / 8),
size.height - 160);
}
}
path.lineTo(0.0, 40.0);
path.close();
return path;
}
@override
bool shouldReclip(CustomClipper<Path> oldClipper) {
return false;
}
}
import 'package:flutter/material.dart';
void main()=> runApp(MyApp());
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
debugShowCheckedModeBanner: false,
title: "My App",
home: MyAnimatedWaveCurves(),
);
}
}
class MyAnimatedWaveCurves extends StatefulWidget{
@override
State<StatefulWidget> createState() {
return _MyAnimatedWavesCurves();
}
}
class _MyAnimatedWavesCurves extends State<MyAnimatedWaveCurves> with SingleTickerProviderStateMixin {
//use "with SingleThickerProviderStateMixin" at last of class declaration
//where you have to pass "vsync" argument, add this
Animation<double> animation;
AnimationController _controller; //controller for animation
@override
void initState() {
super.initState();
_controller = AnimationController(duration: Duration(seconds: 4), vsync: this);
_controller.repeat();
//we set animation duration, and repeat for infinity
animation = Tween<double>(begin: -400, end: 0).animate(_controller);
//we have set begin to -600 and end to 0, it will provide the value for
//left or right position for Positioned() widget to creat movement from left to right
animation.addListener(() {
setState(() {}); //update UI on every animation value update
});
}
@override
void dispose() {
super.dispose();
_controller.dispose(); //destory anmiation to free memory on last
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
centerTitle: true,

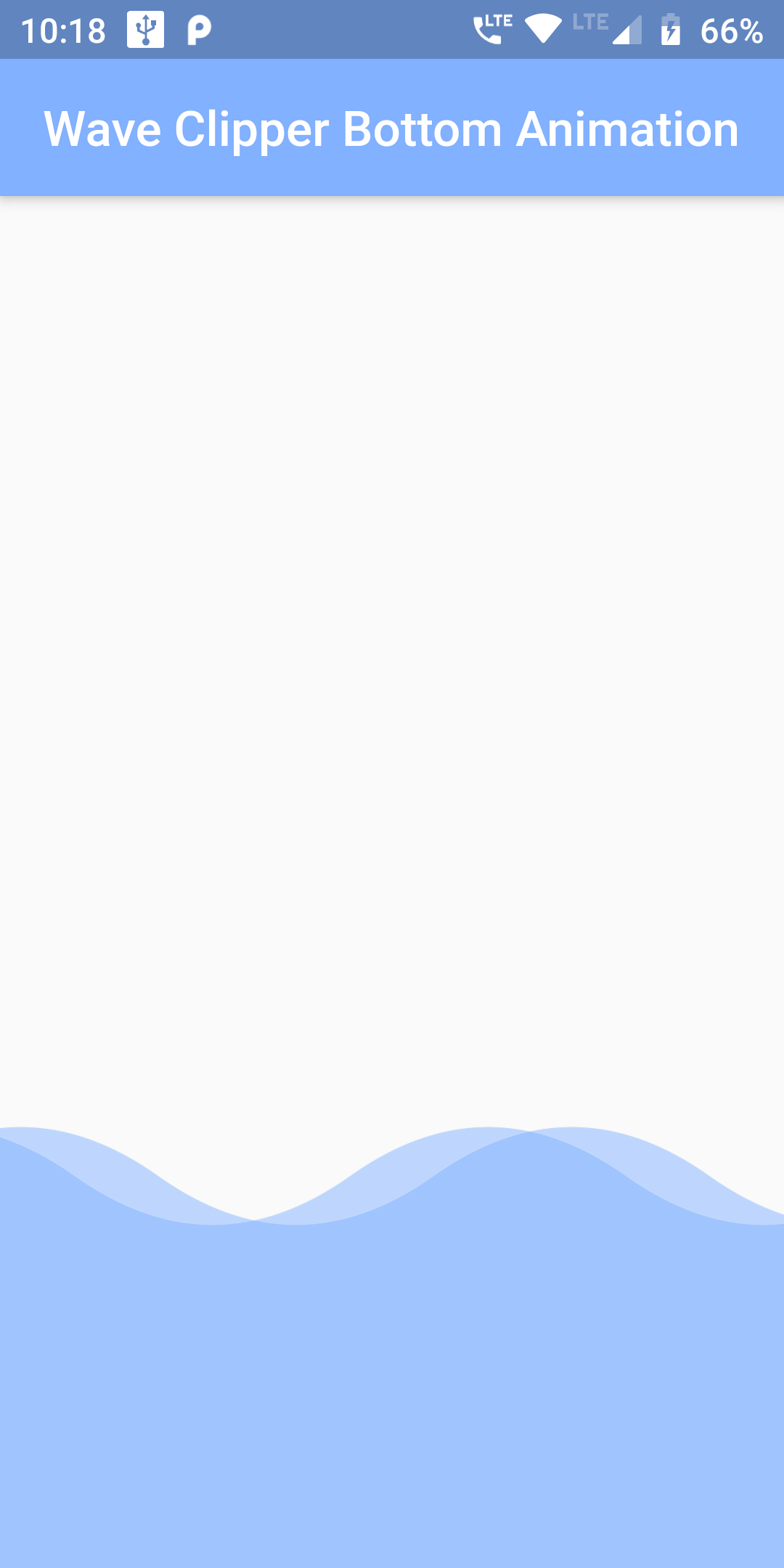

title:Text("Wave Clipper Bottom Animation"),
backgroundColor: Colors.blueAccent[100]
),
body: Container(
child: Stack(
children: [
Positioned(
bottom:0,
right: animation.value,
child: ClipPath(
clipper: MyWaveClipper(), //applying our custom clipper
child: Opacity(
opacity: 0.5,
child: Container(
color: Colors.blueAccent[100],
width: 900,
height: 200,
),
),
),
),
Positioned(
bottom:0,
left: animation.value, //value of left from animation controller
child: ClipPath(
clipper: MyWaveClipper(), //applying our custom clipper
child: Opacity(
opacity: 0.5,
child: Container(
color: Colors.blueAccent[100],
width:900,
height: 200,
),
),
),
),
]),
),
);
}
}
class MyWaveClipper extends CustomClipper<Path> {
@override
Path getClip(Size size) {
var path = new Path();
path.lineTo(0.0, 40.0);
path.lineTo(0.0, size.height);
path.lineTo(size.width, size.height);
path.lineTo(size.width, 40.0);
for (int i = 0; i < 10; i++) {
if (i % 2 == 0) {
path.quadraticBezierTo(
size.width - (size.width / 16) - (i * size.width / 8),
0.0,
size.width - ((i + 1) * size.width / 8),
size.height - 160);
} else {
path.quadraticBezierTo(
size.width - (size.width / 16) - (i * size.width / 8),
size.height - 120,
size.width - ((i + 1) * size.width / 8),
size.height - 160);
}
}
path.lineTo(0.0, 40.0);
path.close();
return path;
}
@override
bool shouldReclip(CustomClipper<Path> oldClipper) {
return false;
}
}
